Marshall Electronics | Studio Cameras

Professional Studio CamerasMarshall ElectronicsReturn to Marshall

Home
Professional Video
Marshall Electronics
Marshall / Professional Studio Cameras

Marshall CV350-10XB / CV350-10X

Compact Full-HD 10X Optical ZOOM Camera with 3G/HD-SDI + HDMI

Marshall CV350-5XB / CV350-5X

2.3MP Broadcast 5X Optical Zoom AF Compact Camera

Marshall CV365-CGB

Full-HD (3G/HD-SDI & HDMI) 2.5MP Compact GENLOCK Camera with AUDIO + HDMI (CS/C lens mount w/ Auto-Iris)

Marshall CV502-WPMB/WPM

Weatherproof Full-HD (3G/HD-SDI) 2.5MP Mini Broadcast Camera with 3.7mm Lens

Marshall Electronics incorporated everything the CV502-MB/M camera delivers and built a weatherproof IP67 rated housing around it - CV502-WPMB/WPM. Perfect for applications where weather becomes a factor; outdoor sporting events, nature observation, weather coverage, news coverage, reality TV, mobile broadcast, or any outdoor application where mother nature has an influence. Utilizing new state of the art 1/3-inch high speed sensor packing 2,476,296 pixels (2.5 Megapixels) of clear, crisp video capture through full sized 3G/HD-SDI (BNC) outputs at resolutions of 1920x1080i, 1920x1080p, 1280x720p & frame-rates of 60/59.94/50/30/29.97/25 fps. New proprietary pixel technology offers the lowest noise ratio on the market today capturing sharp, vivid color images in very low light conditions, as low as 0.05 lux. Industry leading low power consumption draws very low power in full 1920x1080p60/59.94/50fps modes.

Quote Product

[X]

Marshall CV345-CSB / CS

Full-HD (3G/HD-SDI) 2.5MP Compact Broadcast Camera with AUDIO + HDMI

Marshall CV343-CSB / CS

Full-HD (3G-SDI) Compact Broadcast POV Camera

Marshall CV502-U3

High-Definition USB POV Camera

Features:

Sharp, vivid color images up to 1920x1080p/1080i at speeds of 60/50fps
Ultra-wide 126° Horizontal Angle-of-View (2.3mm) M12 lens comes standard
Interchangeable lenses for custom-designed studios, huddle spaces or meeting rooms
Locking 2-meter (6 1/2 foot) USB 3.0 cable with thumb-screw lock on camera for reliable USB connection
Powered through USB cable with easy plug-and-play connectivity with Mac, PC, or Linux system with no driver downloads required
UVC 1.5 (USB Video Class) compliant for easy video adjustments via common computer, UCC, and teleconference software platforms
Self-adaptive resolution and frame-rate to adjust to computer ability and bandwidth available for reliable operation
Durable design with smooth finish for professional installations requiring custom design and reliable operation
2MP 1/3" Progressive scan sensor with 4:2:2 (YCbCr) color space for clear vibrant color images

Marshall CV565-MGB

2.5MP 3G/HD-SDI/HDSDI/HDMI Full-HD Miniature GENLOCK POV Camera with interchangeable 3.7mm HD Lens

Suitable for use in broadcast situations as well as reality TV, sports, houses of worship, and security applications, the Marshall 2.5MP 3G-SDI/HDMI Compact Broadcast Camera with Interchangeable 3.7mm Lens provides HD video in a small form factor. Supporting Tri-Level sync, the camera easily integrates into a broadcast studio workflow for seamless switching without requiring a time base corrector or suffering any frame processing delay. The camera features a 1/3" CMOS sensor and includes an interchangeable 3.7mm lens in an M12 mount. HD video is captured at 1080p and 720p at 60, 59.94, 50, 30, 29.97, and 25 fps. It supports 1080i at 59.94 and 50, outputting via SDI or HDMI. The camera supports sync with 3G-SDI video, as well as Full HD.

Quote Product

[X]

Marshall CV505-MB/M

Full-HD (3G/HD-SDI) 2.5MP

Marshall CV502-MB/M

Full-HD (3G/HD-SDI) 2.5MP Mini-Broadcast

Marshall Electronics 3rd Generation CV502-MB/M improves on all aspects of video performance. Utilizing a new state of the art 1/2.8-inch high speed sensor packing 2,476,296 pixels (2.5 Megapixels) of clear, crisp video capture through full sized 3G/HD-SDI (BNC) outputs at resolutions of 1920x1080i, 1920x1080p, 1280x720p & frame-rates of 60/59.94/50/30/29.97/25 fps. New proprietary pixel technology offers the lowest noise ratio on the market today capturing sharp, vivid color images in very low light conditions, as low as 0.05 lux. Industry leading low power consumption draws very low power in full 1920x1080p60/59.94/50fps modes. New CV502-MB/M Pro-Series POV Cameras continue to offer Field-of-View flexibility with interchangeable lenses and convenience of HD-SDI outputs maintaining a broadcast standard for POV camera applications. New RS485 connect-ability offers remote camera control communication via SONY VISCA or PELCO protocols.

Quote Product

[X]

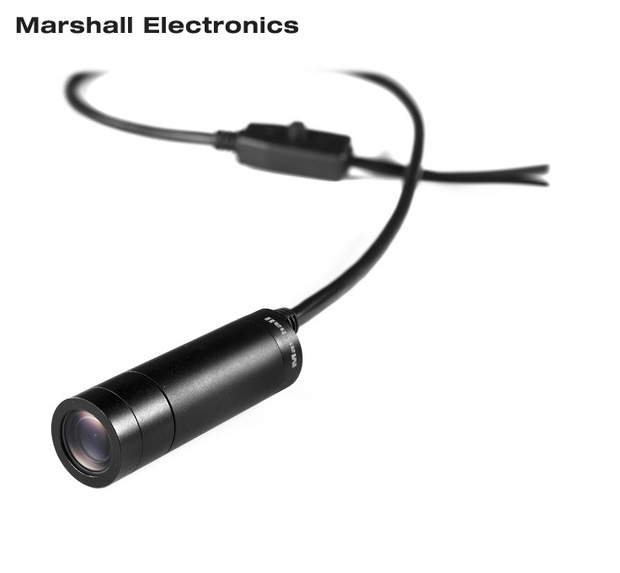

Marshall CV225-MB / M

Lipstick IP67 HD Camera (3G/HD-SDI) + Remote Adjust via RS485 (Visca)

Capture stunning Full-HD video in a versatile, durable and discrete package with the new CV225 IP67 Lipstick Camera from Marshall. The CV225 utilizes the latest sensor technology in a compact and sleek weatherproof design while maintaining broadcast standards. The CV225 is ideal for professional broadcast television applications including professional sporting events, reality television, live music events, broadcast trucks, weather vehicles and house of worship installations. Marshall worked closely with professional video and systems integrators to improve the popular 1st generation CV200 Lipstick Camera. The 2nd generation CV225 IP67 Lipstick Camera incorporates those improvements to offer greater image clarity, enriched true colors, enhanced low light performance, and added ability to remotely adjust without reliance on screen display (OSD) menus.

Quote Product

[X]

Marshall Electronics CV620

2MP Full HD Broadcast PTZ 3G-SDI

Marshall CV350(10XB/10X)

Compact Full-HD 10X Optical ZOOM
Marshall CV350(5XB/5X)

2.3MP Broadcast 5X Optical Zoom AF
Marshall CV365-CGB

Full-HD 2.5MP Compact GENLOCK
Marshall CV502-WPMB/WPM

2MP HDSDI/HDMI Broadcast Camera
Marshall CV345-CSB / CS

Full-HD (3G/HD-SDI) 2.5MP..
Marshall CV343-CSB / CS

Full-HD (3G-SDI) Compact POV Camera
Marshall CV502-U3

High-Definition USB POV Camera
Marshall CV565-MGB

2.5MP 3G/HD-SDI/HDSDI/HDMI Full-HD
Marshall CV505-MB/M

Full-HD (3G/HD-SDI) 2.5MP
Marshall CV502-MB/M

Full-HD (3G/HD-SDI) 2.5MP
Marshall CV225-MB / M

Lipstick IP67 HD Camera (3G/HD-SDI)
Marshall Electronics CV620

2MP Full HD Broadcast PTZ 3G-SDI
